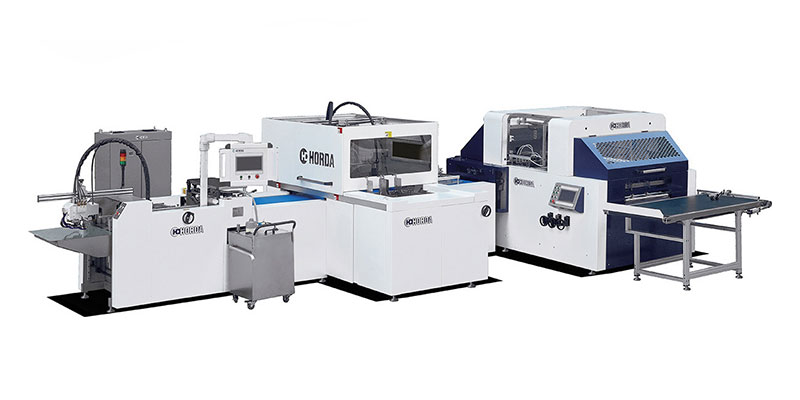

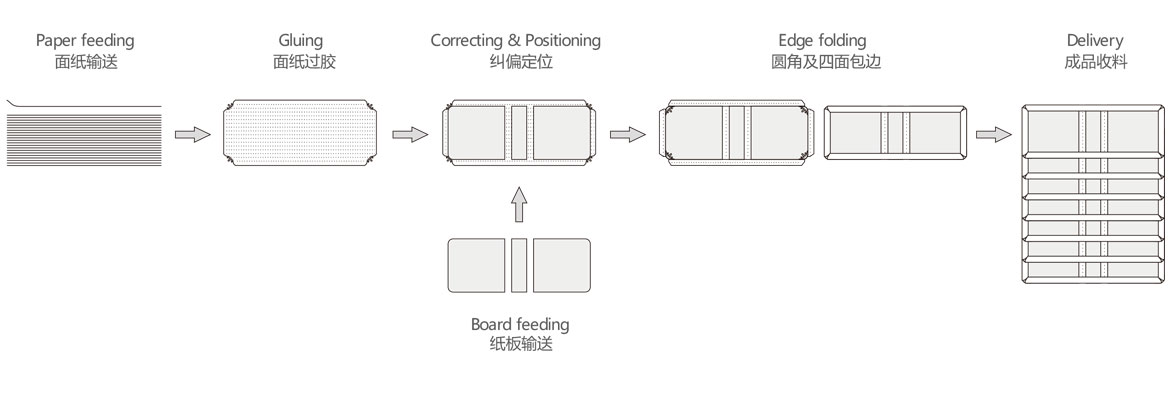

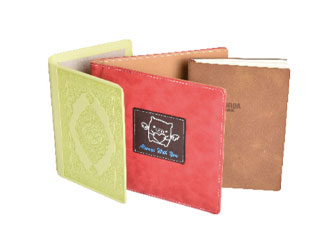

ZFM-700D High Speed Round Corner Book Case Making Machine especially designed and developed for hard cover book and notebok manufacturers. it can produce both round & straight corner h ardcovers. This machine uses motion control system to ensure the accurate synchronous operation of muttiple servo motors, meanwhile, it adopts servo driving, photoelectric positioning, servo rectification , and other new craft& technologies as well. it can automatically finish the process of paper feeding, positioning, corner wrapping and four-edge folding with higher accuracy, faster speed. And This machine makes round corners sleek and beautiful,four edges solid and without empty it's ootimized solution for round corner hardcover book and notebook manufactur.
Upper suction & multi-station folding system, makes the working speed faster and production efficiency higher;
The new-updated and optimized round corner folding mechanism is simple at adjustment, stable in performance and reliable in operation;
Using motion control system to ensure the accurate and synchronous running of multiple servo motors, so that the positioning accuracy is higher and the working speed is faster;
The innovatively designed mechanical edge folding system makes the machine performance more stable, and the edge folding is compact without empty edges;
Through the simple adjustment of the corner wrapping mechanism, straight corner covers can be produced, this design achieves the machine’s multifunction and wider range of applications.
It occupies less space which makes it can be applied to any product flexibly.
The operation system with touch-screen can display the machine fault and hint directly which makes the operation more convenient as well as rapid troubleshooting.
Britaini TRIO motion controller
Germany Leuze photoelectric sensor
French Schneider electric system
Japanese CKD solenoid valve
Taiwan PMI liner slide-way
Germany IGUS bearings
Taiwan TBI precision ball screw
& ball spline
American GATES synchronous belt
Swiss CARLO phase failure protection relay
Taiwan Airtac Pneumatic component
| Model | ZFM-700D | |
| Maximum size | mm | 400×700 |
| Minimum size | mm | 100×180 |
| Paper weight | g | 100-200 |
| Board thickness | mm | 1.0-3.0 |
| Boards amount | Pieces | 1-6 |
| Minimum spine width | mm | 8 |
| Minimum side-board width | mm | 18 |
| Speed | Pieces/min | 10-35 |
| Positioning accuracy | mm | ±0.2 |
| Power supply | kw | 22.5 |
| Weight | kg | 3800 |
| Dimension | mm | 7300×2700×1600 |
(Not standard with machine, please choose freely according to actual needs):
1.Viscosity controller Can automatically add water and keep it at a stable viscosity value, good help for user without experience of using case maker.
2.Cold glue(white glue) system Equipped with a glue pump especially for cold glue use, can satisfy customer’s requirements of making various products.
3.Bottom-suction device Used at inner lining process, fitting for the products with the cover material easily scratched, bottom suction device feeds the board from bottom, can 100% avoid the scratches on product surface.
4.Soft Spine device It’s specially designed for hardcover book manufacturers.The minimum spine thickness：≥ 250g, minimum width: 15mm.
