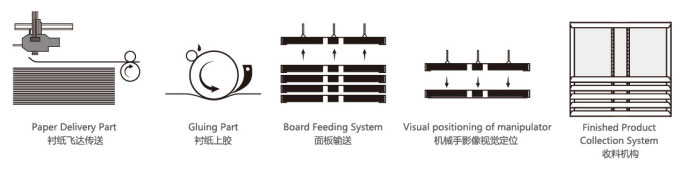

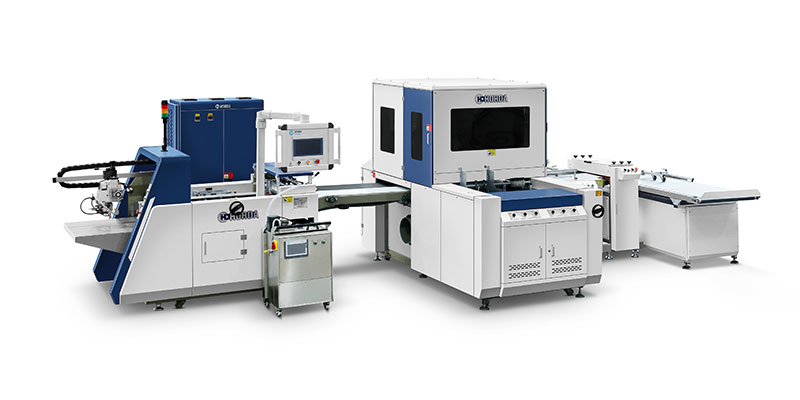

ZTC-700E Automatic Book Cover Inner Laminating Machine (CCD) combines visual positioning technology and automatic laminating function. The machine uses visual systems such as cameras to identify and locate the workpiece, and then automatically and accurately laminates the lining material at the appropriate position to ensure the perfect fit between the lining and the packaging box, reducing the impact of human factors on product quality. Its precise positioning and laminating capabilities can ensure the perfect presentation of the inside and outside of the packaging box, and play an important role in the packaging production of high-end products.
ZTC-700E Automatic Book Cover Inner Laminating Machine (CCD) combines visual positioning technology and automatic laminating function. The machine uses visual systems such as cameras to identify and locate the workpiece, and then automatically and accurately laminates the lining material at the appropriate position to ensure the perfect fit between the lining and the packaging box, reducing the impact of human factors on product quality. Its precise positioning and laminating capabilities can ensure the perfect presentation of the inside and outside of the packaging box, and play an important role in the packaging production of high-end products.
| Model | ZTC-700E | |
| Maximum size | mm | 450×700 |
| Minimum size | mm | 140×190 |
| Board thickness | mm | 1-3 |
| Paper weight | g | 105-210 |
| Maximum speed | Pieces/min | 25-38 |
| Positioning accuracy | mm | ±0.1 |
| Power supply | kw | 14.5 |
| Machine weight | kg | 3000 |
| Dimension (LxWxH) | mm | 6500×2200×1850 |
(Not standard with machine, please choose freely according to actual needs):
1.Viscosity controller Can automatically add water and keep it at a stable viscosity value, good help for user without experience of using case maker.
2.Cold glue(white glue) system Equipped with a glue pump especially for cold glue use, can satisfy customer’s requirements of making various products.
3.Bottom-suction device Used at inner lining process, fitting for the products with the cover material easily scratched, bottom suction device feeds the board from bottom, can 100% avoid the scratches on product surface.
4.Soft Spine device It’s specially designed for hardcover book manufacturers.The minimum spine thickness：≥ 250g, minimum width: 15mm.
Hot melt glue (animal glue) is normally used type, and cold glue is also applicable.
Sure, we do. All Horda machines have CE, ISO9001-2008, and IEC certificate. Our products comply with international quality and export standards.
If customer requires, we will install the machine with viscosity control system. It’s optional, not standard device of the machine.
We have been devoting on increasing new product development, and keeping in touch with the advanced domestic and foreign counterparts to share experience and technology. Our products have the main advantages of high speed, high accuracy, high productivity，and folding storage saves transportation costs.
