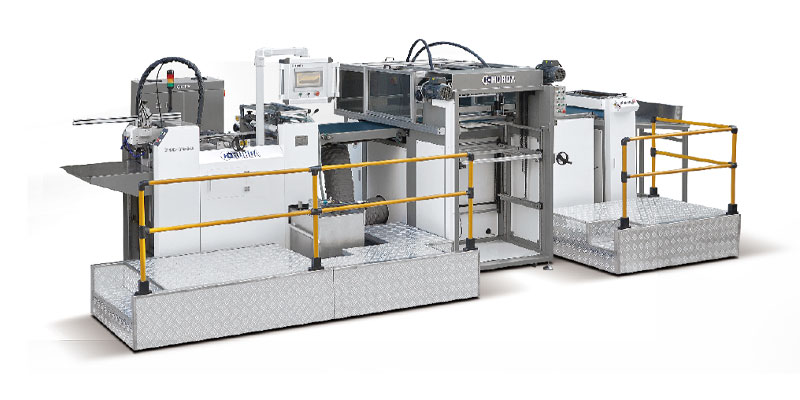

ZTC-700/900/1000/1350C Liner paper laminating machines are mainly used to automatically paste lining paper or lining materials onto various boxes or containers to improve packaging efficiency and quality. Through automated operation, manual labor is reduced, the laminating process is simplified, and the pasting position of the lining is ensured to be accurate, uniform, firm and reliable. Liner paper laminating machines are widely used in production lines of food, cosmetics, medicine, daily necessities and other industries, and have become one of the important equipment to improve packaging production efficiency.
The first enterprise to adopt professional feeder which is dedicated to printing machine in the industry. It enables adjustment convenient and fast, high speed production, performance stable and reliable.
The photoelectric detecting and servo correcting unit assist the board laminating on the inner paper quickly and accurately.
Multi circulation board feeding unit enhances the board feeding speed greatly.
The operating system with touch-screen can display the machine fault and hint directly which makes the operation more convenient as well as rapid troubleshooting.
Adopting up suction feeder is an effective solution to the problem of surface scratches.
Japan Panasonic PLC, Frequency converter
Japan Panasonic servo motor
Japan NSK Bearings
Japan ORION Vacuum Pump
German LEUCE photosensor
Taiwan Airtac Pneumatic Component
| Model | ZTC-700C | ZTC-1000C | ZTC-1350C | |
| Maximum size | mm | 450×700 | 600×1000 | 750×1350 |
| Minimum size | mm | 140×190 | 140×190 | 140×190 |
| Board thickness | mm | 1-3 | 1-3 | 1-3 |
| Paper weight | g | 105-210 | 105-210 | 105-210 |
| Maximum speed | Pieces/min | 20-30 | 15-25 | 10-25 |
| Positioning accuracy | mm | ±0.2 | ±0.5 | ±0.5 |
| Power supply | KW | 13.5 | 14.5 | 15 |
| Machine weight | kg | 2500 | 3500 | 4000 |
| Dimension (L×W×H) | mm | 6500×2200×1850 | 7800×2600×1850 | 8500×2600×1850 |
(Not standard with machine, please choose freely according to actual needs):
1.Viscosity controller Can automatically add water and keep it at a stable viscosity value, good help for user without experience of using case maker.
2.Cold glue(white glue) system Equipped with a glue pump especially for cold glue use, can satisfy customer’s requirements of making various products.
3.Bottom-suction device Used at inner lining process, fitting for the products with the cover material easily scratched, bottom suction device feeds the board from bottom, can 100% avoid the scratches on product surface.
4.Soft Spine device It’s specially designed for hardcover book manufacturers.The minimum spine thickness：≥ 250g, minimum width: 15mm.
Hot melt glue (animal glue) is normally used type, and cold glue is also applicable.
Sure, we do. All Horda machines have CE, ISO9001-2008, and IEC certificate. Our products comply with international quality and export standards.
If customer requires, we will install the machine with viscosity control system. It’s optional, not standard device of the machine.
We have been devoting on increasing new product development, and keeping in touch with the advanced domestic and foreign counterparts to share experience and technology. Our products have the main advantages of high speed, high accuracy, high productivity，and folding storage saves transportation costs.
