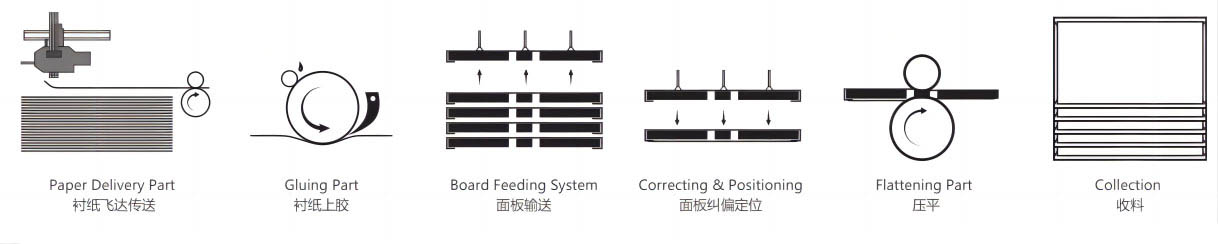

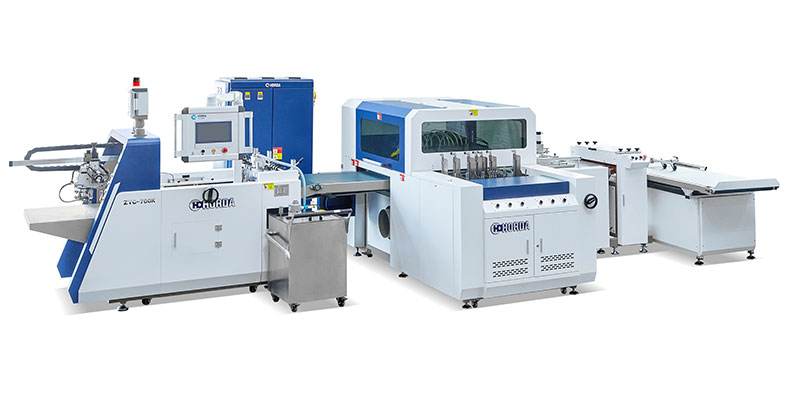

ZTC-700K High Speed Inner Laminating Adhesive Machine uses servo drive, photoelectric positioning, servo correction and other latest technology as well. This machine can automatically finish the inner paper feeding, gluing, cardboard feeding, positioning and flattening processes with high accuracy, fast speed and high quality .Thus this machine is the preferred solution for printing and packaging enterprises to make the hardcover inner laminating process.Material of inside lining paper including writing paper;coated paper;specialty paper;synthetic paper;cloth etc.
The first enterprise to adopt professional feeder which is dedicated to printing machine in the industry. It enables adjustment convenient and fast, high speed production, performance stable and reliable.
The photoelectric detecting and servo correcting unit assist the board laminating on the inner paper quickly and accurately.
The operating system with touch-screen can display the machine fault and hint directly which makes the operation more convenient as well as rapid troubleshooting.
Adopting up suction feeder is an effective solution to the problem of surface scratches.
Performance Features
1. The first one in the industry adopts professional printing machine Fida, which is convenient and fast to adjust, high speed operation, stable and reliable performance.
2. Photoelectric positioning, servo correction device, can quickly and accurately position the cover on the liner paper
3. Touch screen operating system, which can directly display the cause of machine failure, making the operation more simple and convenient, and maintenance more convenient.
4. The board feeding mechanism adopts the upper suction type flyer, which effectively solves the problem of rubbing marks on the product surface.
Japanese Panasonic PLC, Frequency converter
Japanese Panasonic servo motor
Japanese NSK Bearings
Japanese ORION Vacuum Pump
German LEUCE photosensor
Taiwan Airtac Pneumatic Component
| Model | ZTC-700K | |
| Maximum size | mm | 450×700 |
| Minimum size | mm | 140×190 |
| Board thickness | mm | 1-3 |
| Paper weight | g | 105-210 |
| Maximum speed | Pieces/min | 20-35 |
| Positioning accuracy | mm | ±0.2 |
| Power supply | kw | 13.5 |
| Machine weight | kg | 2500 |
| Dimension (L×W×H) | mm | 6500×2200×1850 |
(Not standard with machine, please choose freely according to actual needs):
1.Viscosity controller Can automatically add water and keep it at a stable viscosity value, good help for user without experience of using case maker.
2.Cold glue(white glue) system Equipped with a glue pump especially for cold glue use, can satisfy customer’s requirements of making various products.
3.Bottom-suction device Used at inner lining process, fitting for the products with the cover material easily scratched, bottom suction device feeds the board from bottom, can 100% avoid the scratches on product surface.
4.Soft Spine device It’s specially designed for hardcover book manufacturers.The minimum spine thickness：≥ 250g, minimum width: 15mm.
Hot melt glue (animal glue) is normally used type, and cold glue is also applicable.
Sure, we do. All Horda machines have CE, ISO9001-2008, and IEC certificate. Our products comply with international quality and export standards.
If customer requires, we will install the machine with viscosity control system. It’s optional, not standard device of the machine.
We have been devoting on increasing new product development, and keeping in touch with the advanced domestic and foreign counterparts to share experience and technology. Our products have the main advantages of high speed, high accuracy, high productivity，and folding storage saves transportation costs.
